斜井钻机
发布时间：2019-07-23
|
斜井钻机Inclined well drilling rig |
RG MYC45-X |
RG MYC75-X |
|||
|
钻进能力 Drilling capacity |
最大钻孔深度 Max drilling depth |
m |
1000 |
1500 |
|
|
最大钻孔直径 Max drilling diameter |
mm |
φ650 |
|||
|
钻杆直径 Diameter of drilling pipe |
mm |
89 / 102 / 114 |
|||
|
钻杆长度Length of drilling pipe |
mm |
6000（Optional 9500） |
|||
|
拖挂底盘 Trailer-mounted chassis |
发动机品牌 Engine brand |
/ |
Cummins |
||
|
发动机功率 engine power |
kW |
264 |
317 |
||
|
额定载荷 rated load |
kg |
13000*3 |
|||
|
最高车速 Maximum speed |
km/h |
70 |
|||
|
轮胎型号 Tyre size |
/ |
12.00R20-20PR |
|||
|
井架 Mast |
角度调节 angle adjustment |
/ |
45～90°（5°调节一次）(every 5° for adjustment) |
||
|
行程Stroke |
mm |
9000 |
15000 |
||
|
进给系统 Feeding system |
提升力 Lifting force |
kN |
490 |
750 |
|
|
提升下放速度 Speed of lifting |
m/min |
0～17.2 |
0～36 |
||
|
最大加压力 Max. pressuring force |
kN |
40 |
80 |
||
|
动力头 Power unit |
扭矩 Torque |
N.m |
0～15000 |
0～20000 |
|
|
转速 Rotary speed |
r/min |
0~170 |
0~160 |
||
|
内径 Inner diameter |
mm |
76 |
|||
|
管汇压力 Manifold pressure |
Mpa |
21 (泥浆slurry+空气air) |
|||
|
泥浆泵 Mud pump（Optional） |
最大压力 Max pressure |
Mpa |
4.5 |
/ |
|
|
最大排量 Max displacement |
L/min |
855 |
/ |
||
|
工具卷扬Tool winch |
提升力 Lifting force |
kN |
30 |
||
|
运输尺寸 Transport dimension |
长×宽×高Length ×Width × Height |
mm |
13800×2550×4000 |
||
|
整机重量Overall weight |
t |
32 |
|||
1.井架上段辅助支撑，在倾斜角度超过20°时安装，以保证井架稳定性 90°井架垂直状态 ，井架最大倾角 45°，每次最小调整角度 5°45°时最大提升力400 kN
2.液压伸缩套装井架，井架符合API 4F规范，适用API Range 2 钻杆及API Range 3 套管.
3.顶驱最大行程 15,000 mm (49 ft)安装辅助支撑不需要吊车，仅用5T叉车
4.底座净空高 2500 mm，满足安装28-21环形BOP及四通要求，转盘梁最大静载荷 (75 metric ton)，钻台一部分可以随钻机一起运输
5.设计制造符合API SpecQ1、4F、7K、8C、16C及APIRP500、等规范，执行GB/T 30216-2013、GB1589-2016标准。采用“以人为本”设计理念，强化安全保护和检测措施，满足HSE规范要求。

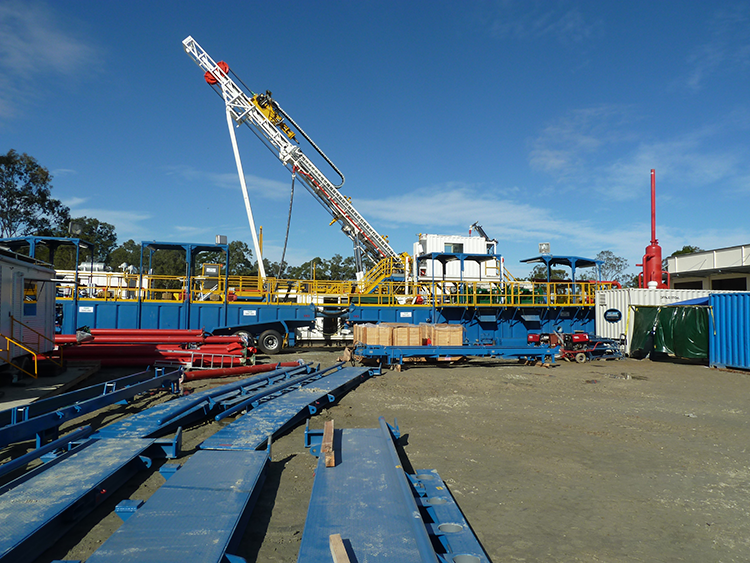

1. The upper support of the mast is installed when the inclined angle is more than 20°, which can make sure the stability of the mast. When it is in 90° condition, the mast is vertical. The maximum inclined angle of the mast is 45°. Minimum adjustment angle for every time is 5°. When it is in 45° condition, the maximum lifting force is 40metric ton.
2. The mast is matched with hydraulic telescopic casing, and then the mast is conformed to API 4F, which is suitable for API Range 2 DP and API Range 3 casing pipe.
3. Max. stroke of the top drive is 15,000 mm (49 ft). Crane is not used for the installation of the auxiliary support, only 5T forklift is adopted.
4. The headroom of the substructure is 2500mm, meeting the needs of the installation of 28-21 BOP and four-way joint.
5. The design and manufacture conforms to API SpecQ1, 4F, 7K, 8C, 16C and APIRP500, performing the standard of GB/T 30216-2013 and GB1589-2016. The design idea of people orientated is adopted, intensifying the methods of safety protection and inspection to meet the needs of HSE regulation.
